CONTRAFLAM Structure

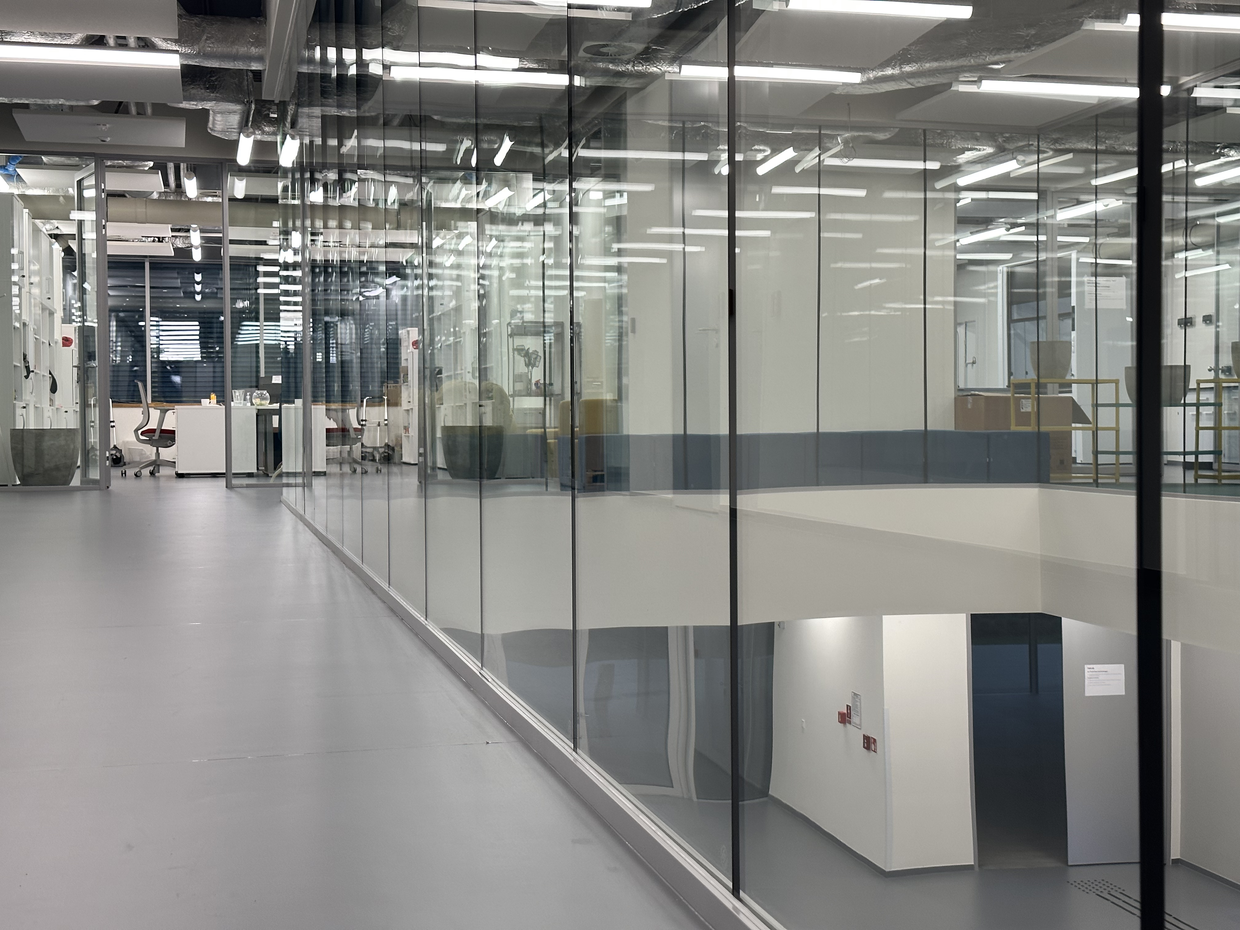

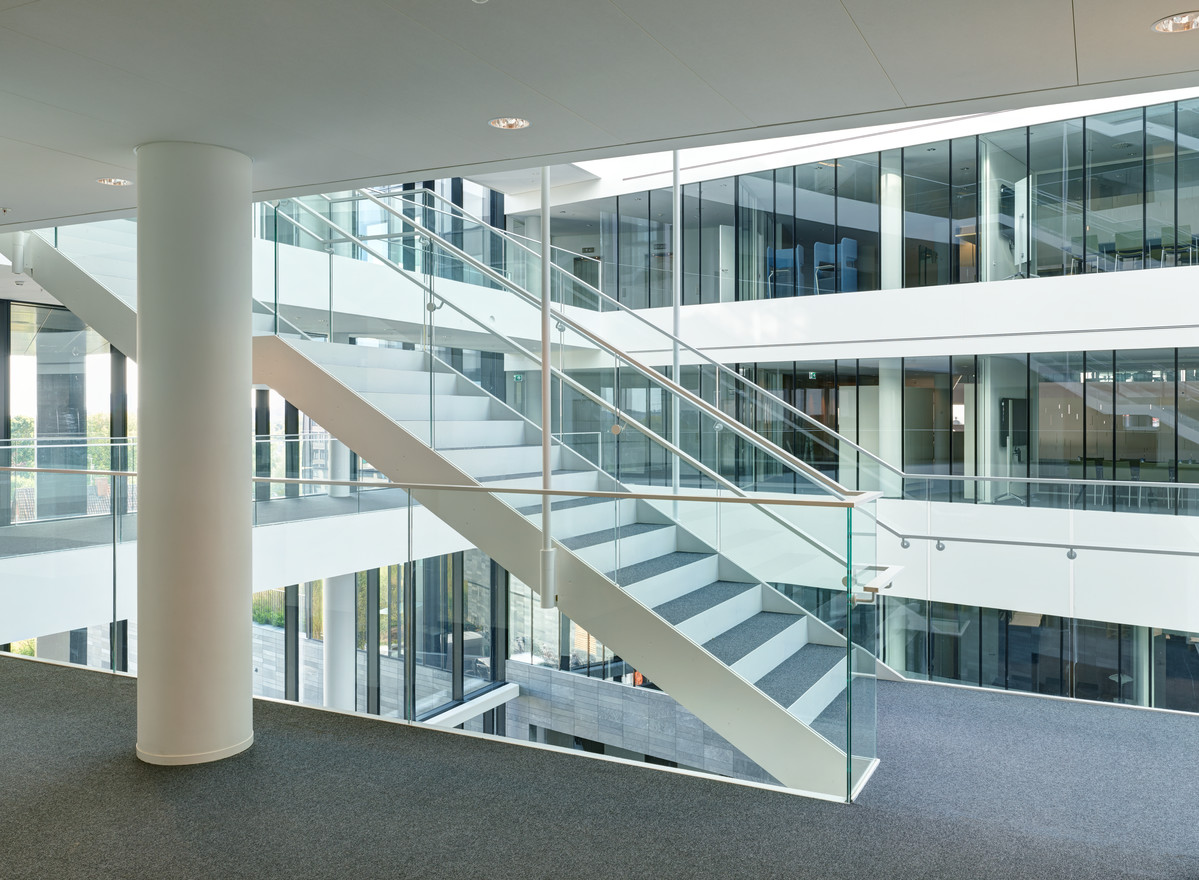

CONTRAFLAM Structure sets new standards in the design of transparent fire protection systems. The floor-to-ceiling glazing system provides a continuous, uninterrupted glass wall, joined only with silicone.
Made of CONTRAFLAM fire-resistant glass, CONTRAFLAM Structure is engineered to achieve the mechanical resistance required to support interior wall line-loads and offer superior edge aesthetic.
*under specific conditions
Product Family
CONTRAFLAM STRUCTURE
EW30/60 to EI30/120
Height up to 3800 mm. For interior & exterior application under specific conditions.
CONTRAFLAM STRUCTURE VIBRANCE
EW30/60 to EI30/120
Height up to 3800 mm. For interior & exterior application as insulating glass without restrictions.
Performances
CONTRAFLAM Structure helps create safe escape routes, making it ideal for use in busy areas. When activated, the opaque insulating interlayer blocks the view of the fire, which minimizes panic and guides emergency services by indicating where the fire is located.

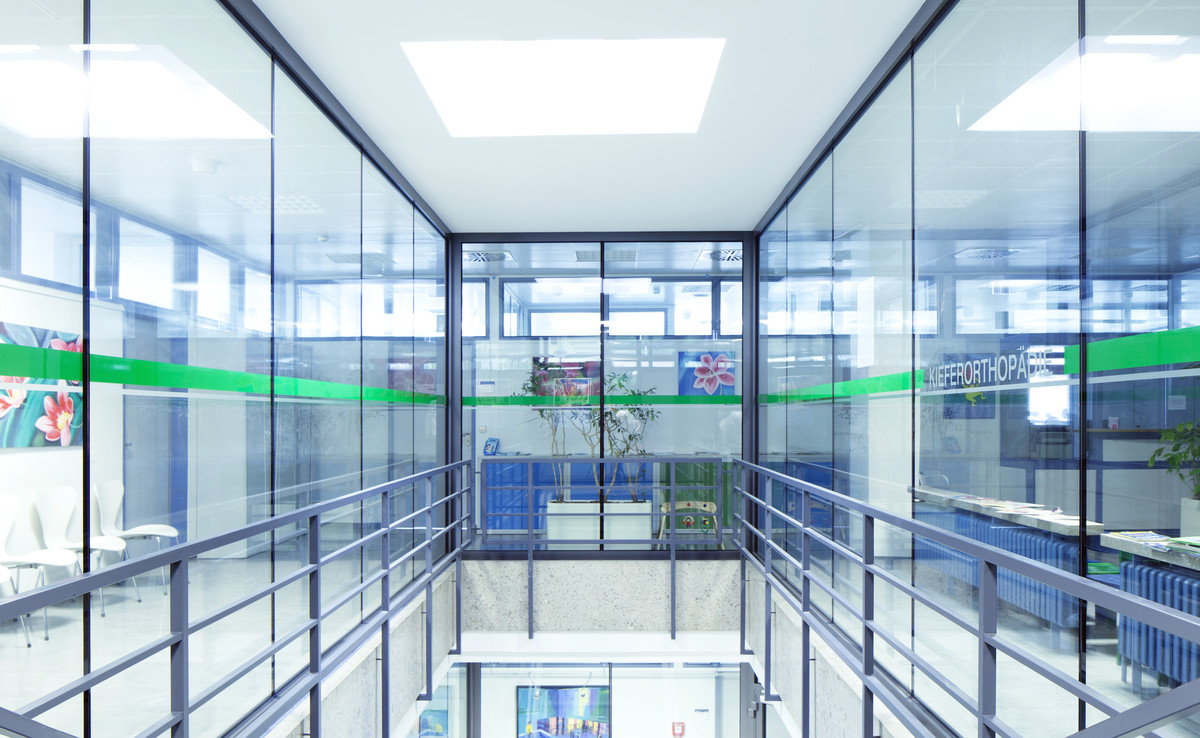

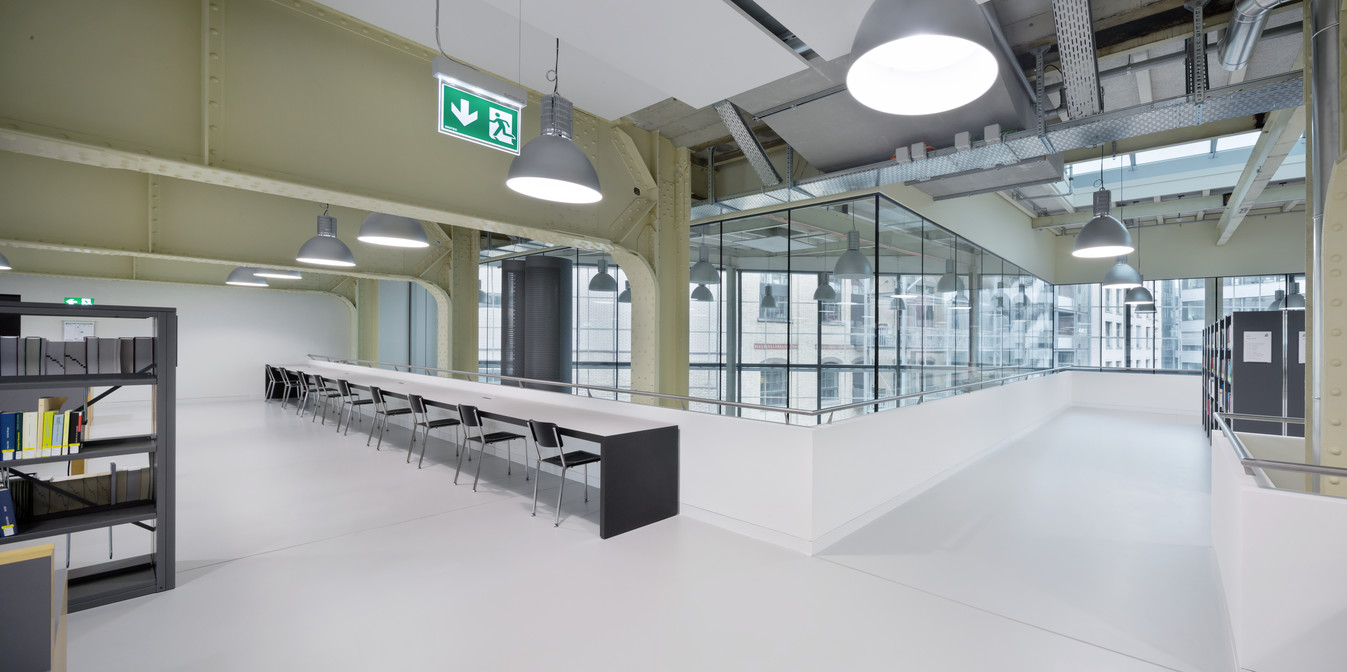

The original flush butt-joint glazing solution eliminates vertical frame profiles while achieving ratings of up to EI120. Because it allows for minimal framing elements, the crisp and clean lines of CONTRAFLAM Structure helps flood buildings with natural daylight without compromising on safety. Its glass thickness can be increased to achieve the mechanical resistance required to support interior wall line-loads.

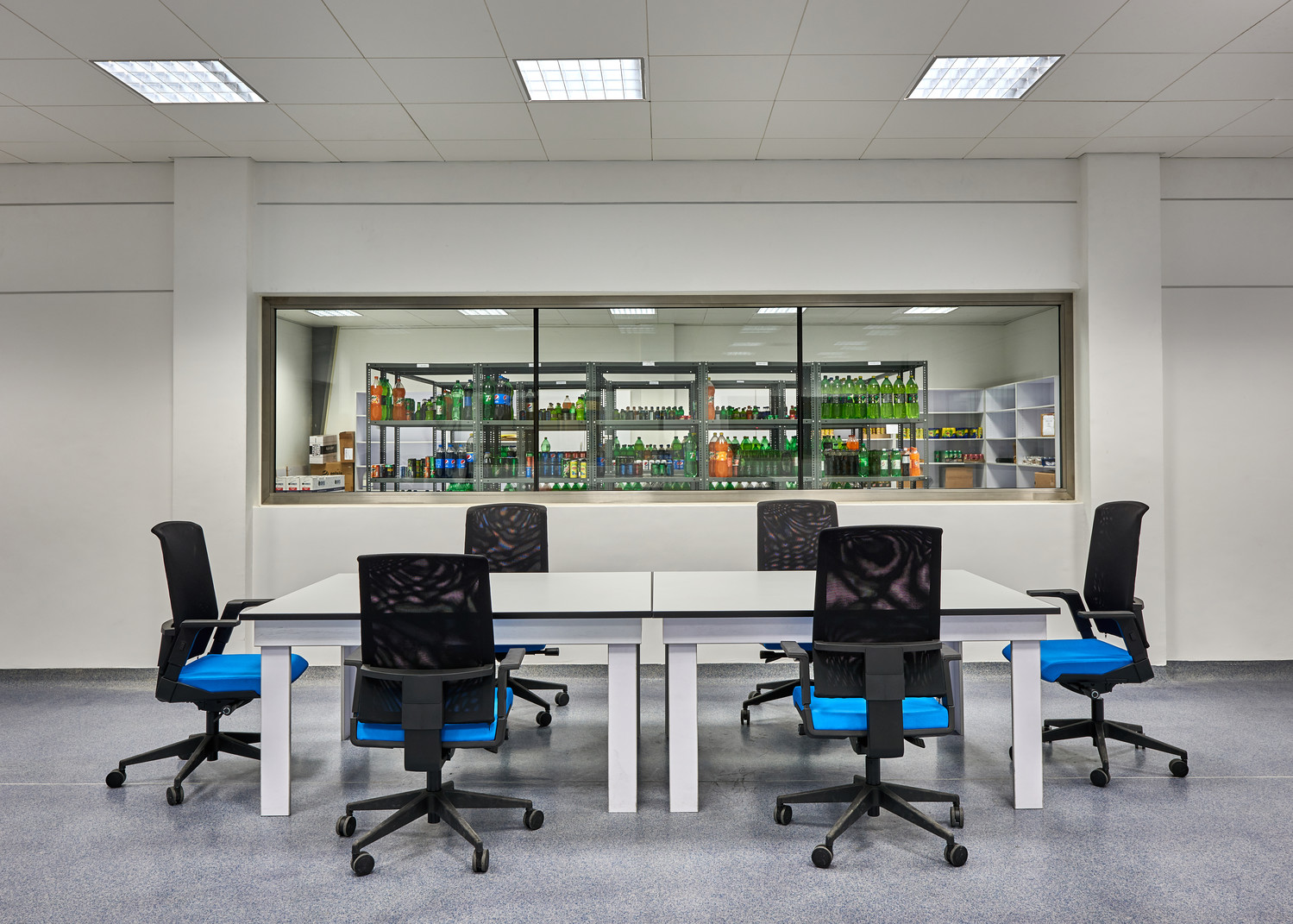

Interior solutions
| Product | Fire resistance classification | Thickness | Weight (kg/m2) | Light transmission to EN 410 | Sound reduction to EN 673 (Rw dB) | Safety according to EN 12600 |
|---|---|---|---|---|---|---|
| CONTRAFLAM Structure 30 | EI30 | 23 mm | 52 | 83% | 42 | 1(B)1 |
| CONTRAFLAM Structure 60 | EI60 | 31 mm | 69 | 81% | 43 | 1(B)1 |
| CONTRAFLAM Structure 90 | EI90 | 45 mm | 95 | 77% | 47 | 1(B)1 |
| CONTRAFLAM Structure 120 | EI120 | 52 mm | 110 | 74% | 44 | 1(B)1 |
| CONTRAFLAM Structure Lite 60 | EW60 | 20 mm | 46 | 84% | 39 | 1(B)1 |
*measured or calculated
Exterior solutions
| Product | Fire resistance classification | Thickness | Weight (kg/m2) | Light transmission to EN 410 | Sound reduction to EN 673 (Rw dB) | Solar Factor to EN 410 | Safety according to EN 12600 |
|---|---|---|---|---|---|---|---|
| CONTRAFLAM Structure 30 Climaplus | EI30 | 41 mm | 67 | 64% | - | 0.36 | 1(C)1/ 1(B)1 |
| CONTRAFLAM Structure 60 Climaplus | EI60 | 49 mm | 84 | 63% | - | 0.36 | 1(C)1/ 1(B)1 |
| CONTRAFLAM Structure 90 Climaplus | EI90 | 63 mm | 110 | 59% | - | 0.35 | 1(C)1/ 1(B)1 |
*measured or calculated
Performance table info
* These are only examples of possible make-ups. According to dimensions & weight, these values will change. Please contact us for precise values.
** The values shown are without tolerances.
*** Triple glazing with Ug-values > 0.5 W/ m²K are available
Data provided in this table is for a standard solution and will vary according to selected configurations and options. All our solutions can be customised based on our extensive available options able to meet virtually any project requirement.
For more information, please contact us.
Customisation
All characteristics described above are examples. CONTRAFLAM Structure products and systems can be customised to meet your specific needs. Vetrotech provides design-assist support that ensures your project meets your requirements and design goals.
Together, let’s make your project unique!
Fire testing Video
Want to see for yourself how CONTRAFLAM glass reacts when in contact with fire? Watch our fire test demonstration video.
Related Classification
EW classification
Class EW (Integrity & Radiation) fire-rated glass limits the transmission of radiant heat, reduces the risk of fire spread, and creates safer separation distances.
E classification
Class E (or Integrity only) fire-rated glass provides a barrier against the passage of flames, smoke, and hot, toxic gases.
